Antistatic Rubber Sheets / Sheet / Roll Type
Artikelnummer:
kandidater hittades.Skiss och specifikationstabell

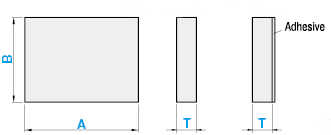

Dimensional Drawing
● No Adhesive
● Adhesive
[ ! ]A ≥ B
| Type | [M] Material | Color | Adhesive (Adhesive) | |||
| Sheet Type | Rolled Type | Front | Back | |||
| No Adhesive | Adhesive | |||||
| RBDLG | RBDLGT | RBDLGR | Conductive NBR (Conductive Nitrile Rubber) | Green | Black | Conductive Adhesives |
Specification Table
■ Sheet Type
■Rolled Type
| Part Number | — | A | — | B |
| RBDLG2 | — | 200 | — | 100 |
| Part Number | — | A | — | B |
| RBDLGR2 | — | 100 | — | 50 |
■ Sheet Type
■Rolled Type
[ ! ] Rolled Type is available in 1 cm Increments.
| Part Number | 10 mm Increments (A ≥ B) | ||
| Type | T | A | B |
| RBDLG·RBDLGT | 2 | 50 to 1000 | 50 to 1000 |
| Part Number | Selection | ||
| Type | T | A (cm) | B (cm) |
| RBDLGR | 2 | 100 200 300 500 1000 | 50 100 |
■Properties
■Conductive Adhesive Data
| Item | Unit | Value | |
| Specific Gravity | — | 1.21 | |
| Hardness | Shore A | 76 | |
| Elongation | % | 680 | |
| Tensile Strength | kg/cm2 | 160 | |
| Tearing Strength | kg/cm | 42 | |
| Specific Volume Resistivity | Ω·cm | 106〜7 | |
| Flash Point | °C | 246 | |
| Spontaneous Ignition Temperature | °C | 396 | |
[ ! ] Values are measured on surface.
| |||
| Item | Unit | Conductive Adhesives | ||
| Thickness | mm | 0.03 | ||
| * Adhesive Strength | gf/20mm | Stainless Steel | 700 | |
| Resistance | Ω | 0.05 | ||
*180° Peel Adhesive Strength 23°C × 1H (gf/20 mm)
| ||||
Artikelnummerlista
Antal artiklar
| Artikelnummer |
|---|
Enhetspris (exklusive MOMS)(Enhetspris inklusive MOMS) | Standardavsändningsdatum |
|---|
- ( - ) | 7 arbetsdagar |
284.43 € ( 338.47 € ) | 5 arbetsdagar |
505.85 € ( 601.96 € ) | 5 arbetsdagar |
43.53 € ( 51.80 € ) | 5 arbetsdagar |
77.44 € ( 92.15 € ) | 5 arbetsdagar |
77.93 € ( 92.74 € ) | 5 arbetsdagar |
138.93 € ( 165.33 € ) | 5 arbetsdagar |
111.09 € ( 132.20 € ) | 5 arbetsdagar |
197.63 € ( 235.18 € ) | 5 arbetsdagar |
173.59 € ( 206.57 € ) | 5 arbetsdagar |
309.74 € ( 368.59 € ) | 5 arbetsdagar |
- ( - ) | 7 arbetsdagar |
