Long Stroke, Bellows Type, VPD, One Touch Fitting Type, No Cover (VPOD30-50BN-6J)
- Enhetspris (exkl. MOMS)
- 35.90 €
- Totalt (exkl. MOMS)
- 35.90 €Pris inklusive MOMS:42.72 €
- Förväntade leveransdagar
- 11 arbetsdagarAvsändningsdatum för referens: 24.10.2025
| Antal | 1 - 20 | 21+ |
|---|---|---|
| Pris per enhet (exklusive MOMS) (Enhetspris inklusive MOMS) | 35.90 € ( 42.72 € ) | 35.90 € ( 42.72 € ) |
| Leveransdagar | Loading... | Loading... |
- * Information om dagar till leverans, fraktkostnader och priser
Produktinformation

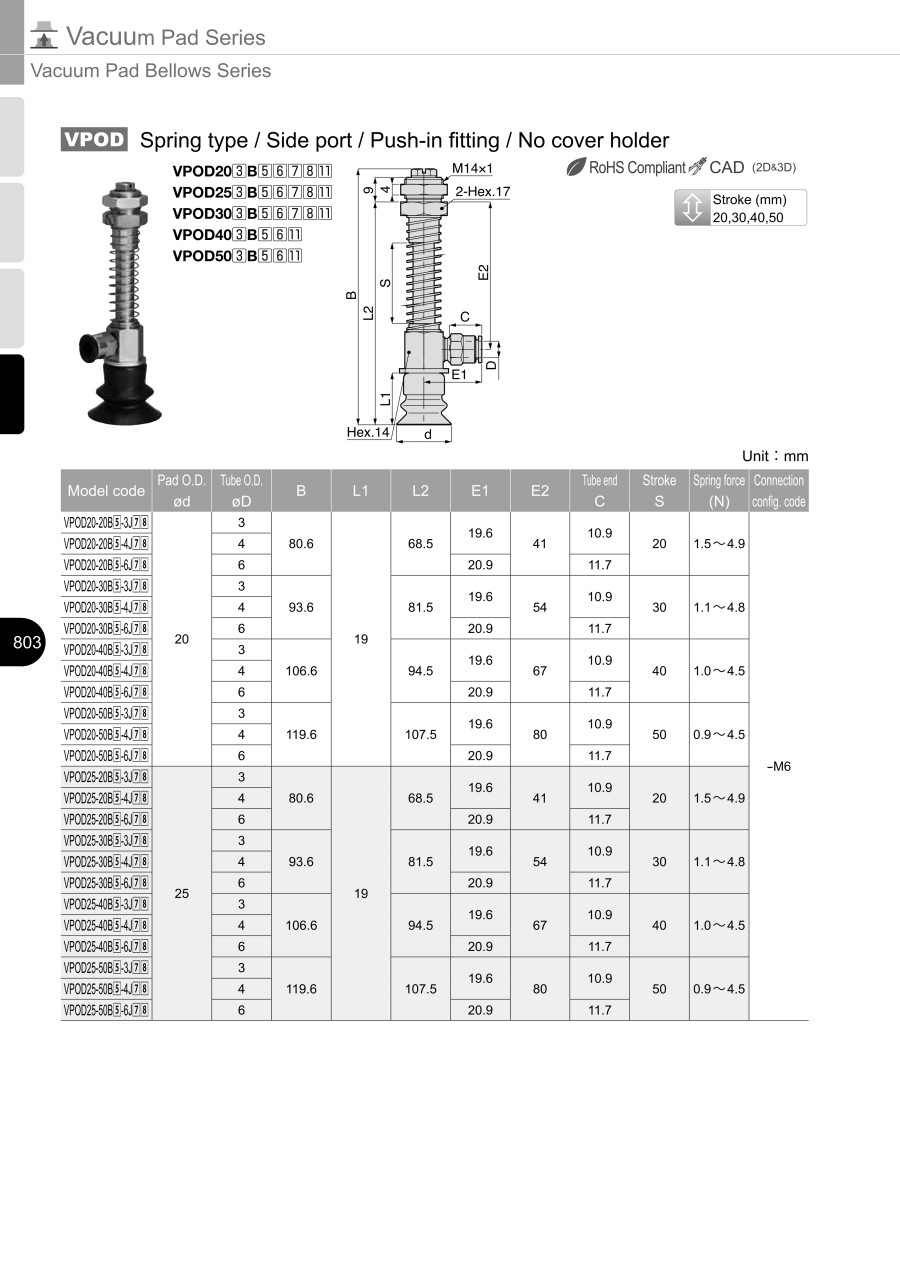

Dimensions
Standard table
| Model code | Pad O.D. ød | Tube O.D. øD | B | L1 | L2 | E1 | E2 | Tube end C | Stroke S | Spring force (N) | Connection config. code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VPOD20-20B5-6J[7][8] | 20 | 6 | 80.6 | 19 | 68.5 | 20.9 | 41 | 11.7 | 20 | 1.5~4.9 | -M6 |
| VPOD20-30B5-6J[7][8] | 93.6 | 81.5 | 20.9 | 54 | 30 | 1.1~4.8 | |||||
| VPOD20-40B5-6J[7][8] | 106.6 | 94.5 | 20.9 | 67 | 40 | 1.0~4.5 | |||||
| VPOD20-50B5-6J[7][8] | 119.6 | 107.5 | 20.9 | 80 | 50 | 0.9~4.5 | |||||
| VPOD25-20B5-6J[7][8] | 25 | 80.6 | 19 | 68.5 | 20.9 | 41 | 20 | 1.5~4.9 | |||
| VPOD25-30B5-6J[7][8] | 93.6 | 81.5 | 20.9 | 54 | 30 | 1.1~4.8 | |||||
| VPOD25-40B5-6J[7][8] | 106.6 | 94.5 | 20.9 | 67 | 40 | 1.0~4.5 | |||||
| VPOD25-50B5-6J[7][8] | 119.6 | 107.5 | 20.9 | 80 | 50 | 0.9~4.5 | |||||
| VPOD30-20B5-6J[7][8] | 30 | 84.6 | 23 | 72.5 | 20.9 | 41 | 20 | 1.5~4.9 | |||
| VPOD30-30B5-6J[7][8] | 97.6 | 85.5 | 20.9 | 54 | 30 | 1.1~4.8 | |||||
| VPOD30-40B5-6J[7][8] | 110.6 | 98.5 | 20.9 | 67 | 40 | 1.0~4.5 | |||||
| VPOD30-50B5-6J[7][8] | 123.6 | 111.5 | 20.9 | 80 | 50 | 0.9~4.5 | |||||
| VPOD40-20B5-6J | 40 | 91.6 | 30 | 79.5 | 20.9 | 41 | 20 | 1.5~4.9 | |||
| VPOD40-30B5-6J | 104.6 | 92.5 | 20.9 | 54 | 30 | 1.1~4.8 | |||||
| VPOD40-40B5-6J | 117.6 | 105.5 | 20.9 | 67 | 40 | 1.0~4.5 | |||||
| VPOD40-50B5-6J | 130.6 | 118.5 | 20.9 | 80 | 50 | 0.9~4.5 | |||||
| VPOD50-20B5-6J | 50 | 93.6 | 32 | 81.5 | 20.9 | 41 | 20 | 1.5~4.9 | |||
| VPOD50-30B5-6J | 106.6 | 94.5 | 20.9 | 54 | 30 | 1.1~4.8 | |||||
| VPOD50-40B5-6J | 119.6 | 107.5 | 20.9 | 67 | 40 | 1.0~4.5 | |||||
| VPOD50-50B5-6J | 132.6 | 120.5 | 20.9 | 80 | 50 | 0.9~4.5 |
Units: mm
*[5]: Replaced with Pad rubber material code. Refer to the catalog for details.
*[7]: Replaced with "-Q" for mark-free resin attachment.
*Add extra lengths below to the dimension B in the table above for dimension including a resin attachment.
| Pad O.D. (mm) | ø10 | ø15 | ø20 | ø25 | ø30 |
|---|---|---|---|---|---|
| Length added to dimension B (mm) | 0.5 | 0.5 | 0.5 | 0.8 | 1 |
*[8]: Replaced with Resin attachment material code. Refer to the catalog for details.
*Tightening torque of a pad holder fixing bulkhead nut is 4.5~6 N·m.
Detaljerad information
Grundläggande information
Suction is possible even when distance between pad and workpiece is not fixed. *The CAD data for this series is being revised. This will be available as soon as modifications are complete.
