Bekräftad

Series Name
- Disc Type
Allowable Misalignment
Application
Allowable Torque Range(N•m)
- 1.01 to 3.00
Shaft Bore Dia. 1 d1 (or d)(mm)
- 6
Shaft Bore Dia. 2 d2 (or d)(mm)
- 8
O.D. D(mm)
- 22.2
Overall Length(mm)
- 19.7
Max. Rotational Speed Range(r/min)
- 1,001 to 2,000
Features
Allowable Torque(Nm)
Calculation of the allowable torque (or the Safety Factor, etc.) differs depending on the manufacturer. For details, see the technical data provided by the relevant manufacturer.
- 2.2
Max. Rotational Speed(r/min)
- 10000
Allowable Lateral Misalignment Range(mm)
- 0.02 to 0.2
Allowable Lateral Misalignment(mm)
- 0.02
Allowable Angular Misalignment(deg)
- 1
Environmentally Friendly
- RoHS compliant (10 substances)
Single/Double
- Single
Shaft Bore Shape
- Keywayed Bore d2 Side
Type
- CPKNRK
CAD
- 2D
- 3D
Uppskattade leveransdagar
- Alla
- Inom 8 arbetsdagar

MISUMI

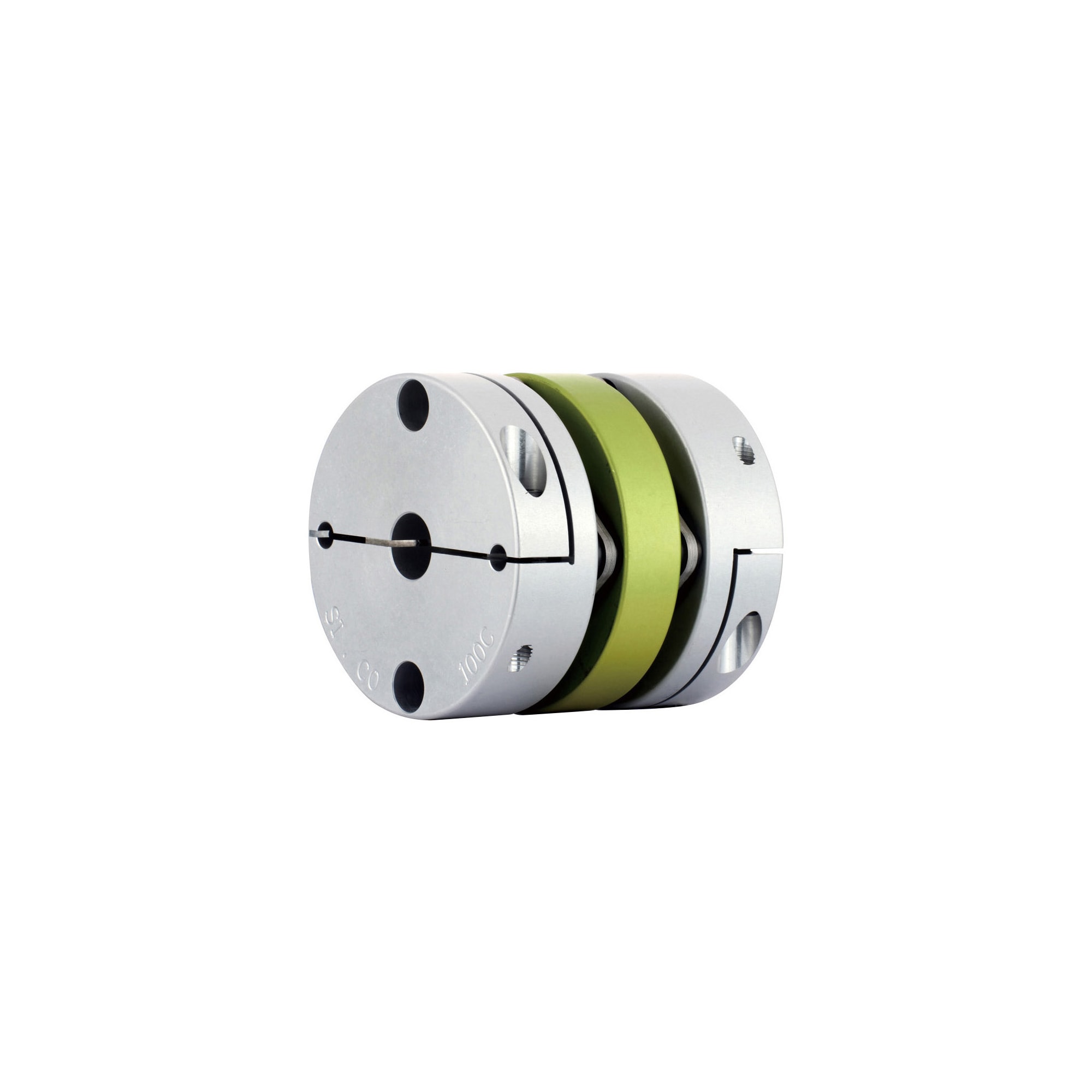

High Accuracy Disc Coupling - Ultra High Torque, Clamping Type (CPKNRK22.2-6-8)

Name: High Accuracy Disc Coupling - Ultra High Torque, Clamping Type from MISUMI | MISUMI
Brand: MISUMI
SKU: CPKNRK22.2-6-8
Price: 33.14 EUR
Availability: Instock

High Accuracy Disc Coupling - Ultra High Torque, Clamping Type CPKNRK22.2-6-8

För musen över bilden för att förstora

Artikelnummer:

CPKNRK22.2-6-8

Rensa

Enhetspris (exkl. MOMS)
33.14 €
Totalt (exkl. MOMS)
33.14 €
Pris inklusive MOMS: 39.44 €
Skickas den
8 arbetsdagar
Avsändningsdatum för referens: 12.06.2025

Antal ?	1 - 19	20+
Pris per enhet (exklusive MOMS) (Enhetspris inklusive MOMS)	33.14 € (39.44 €)	33.14 € (39.44 €)
Shipping days	8 days	Quote

dagar till leverans, fraktkostnader

priser

Skiss och specifikationstabell
Artikelnummerlista
Detaljerad information

Skiss och specifikationstabell

Dimensional Drawing

Double Disc Type
CPKW (Standard Bore)		CPKWLK (Keywayed Bore d₁) CPKWK (Keywayed Bore d₁, d₂)
		CPKWRK (Keywayed Bore d₂)
D = 16 to 39 D = 42 to 47 D = 54 to 64

Single Disc Type
CPKN (Standard Bore)		CPKNLK (Keywayed Bore d₁) CPKNWK (Keywayed Bore d₁, d₂)
		CPKNRK (Keywayed Bore d₂)

[ ! ] Recommended Fit Tolerance of Applicable Shaft Diameter: h7.

Product Specifications

Disc	Standard Bore	Keywayed Bore			Material			Surface Treatment
Type		d₁ (One Side)	d₂ (One Side)	d₁, d₂ (Both Sides)	Main Body	Disc	Hex Socket Head Cap Screw	Main Body	Hex Socket Head Cap Screw
Double	CPKW	CPKWLK	CPKWRK	CPKWK	Aluminum Alloy	Stainless steel	EN 1.7220 Equiv.	Anodized	Black oxide
Single	CPKN	CPKNLK	CPKNRK	CPKNWK

Specification Table

Part Number	—	Shaft Bore Dia. d₁	—	Shaft Bore Dia. d₂
CPKW22.2	—	5	—	6
CPKWLK22.2	—	5	—	6

Double Disc Type

Part Number		d₁, d₂ Selection (However, d₁ ≤ d₂)																													d₃	L	ℓ	F	A	Clamp Screw
Type	D	d₁, d₂ Selection (However, d₁ ≤ d₂)																													d₃	L	ℓ	F	A	M	Tightening Torque (N⋅m)
Double Disc Type CPKW CPKWLK CPKWRK CPKWK	16	3	4	4.5	5																										6.3	21.2	7.8	2.5	5	M2	0.5
	19	3	4	4.5	5	6																									8.5	23.3	8.7	2.9	6	M2.6	1
	22.2	3	4	4.5	5	6	6.35	7	8	9	9.525																				9	25	8.7	2.8	7	M2.6	1
	26.6		4	4.5	5	6	6.35	7	8	9	9.525	10																			12.2	32.5	10.6	3.4	8.8	M3	1.7
	31.8				5	6	6.35	7	8	9	9.525	10	11	12	12.7	14	15														14.4	33.5	11.6	3.7	11.4	M3	1.7
	35				5	6	6.35	7	8	9	9.525	10	11	12	12.7	14	15	15.875	16												16.2	34.6	12.7	4.4	12.3	M4	3.5
	39				5	6	6.35	7	8	9	9.525	10	11	12	12.7	14	15	15.875	16												17	39.5	13.7	4.3	13.8
	42.5					6	6.35	7	8	9	9.525	10	11	12	12.7	14	15	15.875	16	17	18	19									18	46.2	13.7	4.3	15.5
	47								8	9	9.525	10	11	12	12.7	14	15	15.875	16	17	18	19	20								20.4	50	16	5.2	17
	54											10	11	12	12.7	14	15	15.875	16	17	18	19	20	22	24	25					25	52.6	19	6.3	20.5	M5	8
	64													12	12.7	14	15	15.875	16	17	18	19	20	22	24	25	26	28	30	32	25.8	74.4	26	7.5	22.9	M6	13

* For keywayed bore type, 6φ or less cannot be specified for both d₁ and d₂.

Single Disc Type

Part Number		d₁, d₂ Selection (However, d₁ ≤ d₂)																					L	ℓ	F	A	Clamp Screw
Type	D	d₁, d₂ Selection (However, d₁ ≤ d₂)																					L	ℓ	F	A	M	Tightening Torque (N⋅m)
Single Disc Type CPKN CPKNLK CPKNRK CPKNWK	16	3	4	4.5	5																		17.4	7.8	2.5	5	M2	0.5
	19	3	4	4.5	5	6																	19.3	8.7	2.9	6	M2.6	1
	22.2	3	4	4.5	5	6	6.35	7	8	9	9.525												19.7	8.7	2.8	7	M2.6	1
	26.6		4	4.5	5	6	6.35	7	8	9	9.525	10											24.1	10.6	3.4	8.8	M3	1.7
	31.8				5	6	6.35	7	8	9	9.525	10	11	12	12.7	14	15						26.4	11.6	3.7	11.4	M3	1.7
	35				5	6	6.35	7	8	9	9.525	10	11	12	12.7	14	15	15.875	16				28	12.7	4.4	12.3	M4	3.5
	39				5	6	6.35	7	8	9	9.525	10	11	12	12.7	14	15	15.875	16				31.3	13.7	4.3	13.8
	42.5					6	6.35	7	8	9	9.525	10	11	12	12.7	14	15	15.875	16	17	18	19	31.4	13.7	4.3	15.5

* For keywayed bore type, 6φ or less cannot be specified for both d₁ and d₂.

[ ! ] Recommended Tolerance of Shaft Diameter: h7.

Keyway Dimension

Rod End Bearings - Standard Type / L Short Type: Related Image

Shaft bore diameter d₁, d₂	Dimensions				Key Nominal Dim. (b x h)
	b		t
	Reference Dim.	Tolerance	Reference Dim.	Tolerance
⌀6 to ⌀7	2	±0.0125	1.0	+0.10	2 × 2
⌀8 to ⌀10	3	±0.0125	1.4		3 × 3
⌀11 to ⌀12	4	±0.015	1.8		4 × 4
⌀13 to ⌀17	5		2.3		5 × 5
⌀18 to ⌀22	6		2.8		6 × 6
⌀23 to ⌀30	8	±0.018	3.3		8 × 7
⌀31 to ⌀32	10	±0.018	3.3	+0.20	10 × 8

Product Specifications

Double Disc Type

Part Number		Allowable Torque (N⋅m)	Allowable Angular Misalignment (°)	Allowable Lateral Misalignment (mm)	Torsional Spring Constant (N·m/rad)	Max. Rotational Speed (r/min)	Moment of Inertia (kg⋅m²)	Allowable Axial Misalignment (mm)	Mass (g)
Type	D	Allowable Torque (N⋅m)	Allowable Angular Misalignment (°)	Allowable Lateral Misalignment (mm)	Torsional Spring Constant (N·m/rad)	Max. Rotational Speed (r/min)	Moment of Inertia (kg⋅m²)	Allowable Axial Misalignment (mm)	Mass (g)
CPKW CPKWLK CPKWRK CPKWK	16	0.5	1.0	0.05	200	14000	3.3 × 10^－7	±0.2	9
	19	1.8	1.0	0.05	300	14000	7.4 × 10^－7		14
	22.2	2.2	1.5	0.12	400	10000	1.3 × 10^－6		18
	26.6	3		0.15	600	10000	3.4 × 10^－6	±0.3	34
	31.8	6		0.15	1300	9000	8.8 × 10^－6	±0.4	52
	35	8		0.16	1500	8500	1.2 × 10^－5		67
	39	10		0.18	1800	8000	2.1 × 10^－5		95
	42.5	14		0.18	2000	8000	3.3 × 10^－5	±0.5	120
	47	24		0.2	4000	7500	5.5 × 10^－5		160
	54	44		0.2	7000	7500	1.1 × 10^－4		250
	64	62		0.3	11000	6500	4.8 × 10^－4		455

Single Disc Type

Part Number		Allowable Torque (N⋅m)	Allowable Angular Misalignment (°)	Allowable Lateral Misalignment (mm)	Torsional Spring Constant (N·m/rad)	Max. Rotational Speed (r/min)	Moment of Inertia (kg⋅m²)	Allowable Axial Misalignment (mm)	Mass (g)
Type	D
CPKN CPKNLK CPKNRK CPKNWK	16	1	1	0.02	270	14000	2.6 × 10^－8	±0.1	7
	19	1.8			600		4.0 × 10^－7		8
	22.2	2.2				10000	1.0 × 10^－6		15
	26.6	3			900		2.4 × 10^－6	±0.15	25
	31.8	6			1700	9000	5.8 × 10^－6	±0.2	40
	35	8			2000	8500	1.0 × 10^－5		57
	39	10			2300	8000	1.6 × 10^－5	±0.25	70
	42.5	14			2800		3.4 × 10^－5		95

Artikelnummerlista

Antal artiklar

Artikelnummer

CPKNRK22.2-6-8

Series Name

Allowable Misalignment

Application

Allowable Torque Range

(N•m)

Shaft Bore Dia. 1 d1 (or d)

(mm)

Shaft Bore Dia. 2 d2 (or d)

(mm)

O.D. D

(mm)

Overall Length

(mm)

Max. Rotational Speed Range

(r/min)

Features

Allowable Torque

(Nm)

Max. Rotational Speed

(r/min)

Allowable Lateral Misalignment Range

(mm)

Allowable Lateral Misalignment

(mm)

Allowable Angular Misalignment

(deg)

Allowable Axial Misalignment

(mm)

Moment of Inertia

(kg･m²)

Environmentally Friendly

Single/Double

Shaft Bore Shape

Minsta beställningsantal

Disc Type

Not Provided / Angular Misalignment / Eccentricity / Axial Misalignment

Standard / For Servo Motors / Stepping Motor / Encoder

1.01 to 3.00

22.2

19.7

1,001 to 2,000

High Torsional Rigidity / High Torque Type / High Positioning Accuracy Type / High Durability / Zero Backlash

2.2

10000

0.02 to 0.2

0.02

±0.1

1.0X10-6

RoHS compliant (10 substances)

Single

Keywayed Bore d2 Side

1 stycken

Enhetspris (exklusive MOMS)(Enhetspris inklusive MOMS)	Standardavsändningsdatum

33.14 €

( 39.44 € )

8 arbetsdagar

Detaljerad information

Grundläggande information

Grundläggande information

This is a new product with higher precision and durability than conventional products, and at a lower cost.
[Features]
·Shape with high torsional rigidity. Semi-permanent life with zero backlash.
·Absorbs lateral, angular, and axial misalignment. Stable even at high rotational speed with a low moment of inertia.
· The characteristics of forward/reverse rotation are the same and no repair is required. Excels in oil and chemical resistance.
·A structure that adjusts the misalignment of the axis by the deflection of a thin metal disk.
·It has a large transmission torque and supports high-speed rotation. Simple structure for easy attachment/removal.
[Applications]
·Servo motors, stepping motors, precision motors, etc.
·High-precision encoders, dynamometer drivers, high-speed and high-precision position control systems, centrifuges, copiers, etc.
